TC1000-S+ Thermal Cycler Standard

TC1000-S+ Thermal Cycler Standard - view 2

TC1000-S+ Thermal Cycler Standard - view 3

Technical Specifications

Specification	Details
Model	TC1000-S+
Cat.No.	4044103101
Sample Capacity	0.2 mL 96-Well PCR Plate \| 0.2 mL 8-Tube PCR Strip \| 0.2 mL PCR Tube
Module	96 × 0.2 mL
Heating Temperature Range	0-105℃
Lid Temperature Range	30-115℃
Temperature Display Accuracy	0.1℃
Temperature Control Accuracy	±0.1℃
Temperature uniformity @55℃	±0.2℃
Max. Heating/Cooling Rate	5℃/Sec
Adapter block material	Aluminum
Display	7inches,LCD 1024×600
Input	Touch panel
User defined file system	Max.30 segments 99 cycles, and storage for over 200 files.
Power off protection	Yes
Voltage,Frequency	100-120V/200-240V,50/60Hz,600W
Dimension[WxDxH]	296×370×295mm
Weight	9.5Kg

Description

The TC1000-S+ Thermal Cycler Standard is a thermal cycler supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

High performance Peltier and independent heating segments improving temperature control
Auxiliary heating mechanism diminishes the “edge effect” and enhance the temperature uniformity
Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCR time range (-9min 59s~+9min 59s)
Gradient temperature setting optimizes temperature easily in the single run
Color touch screen with user friendly interface helps to edit programs easily

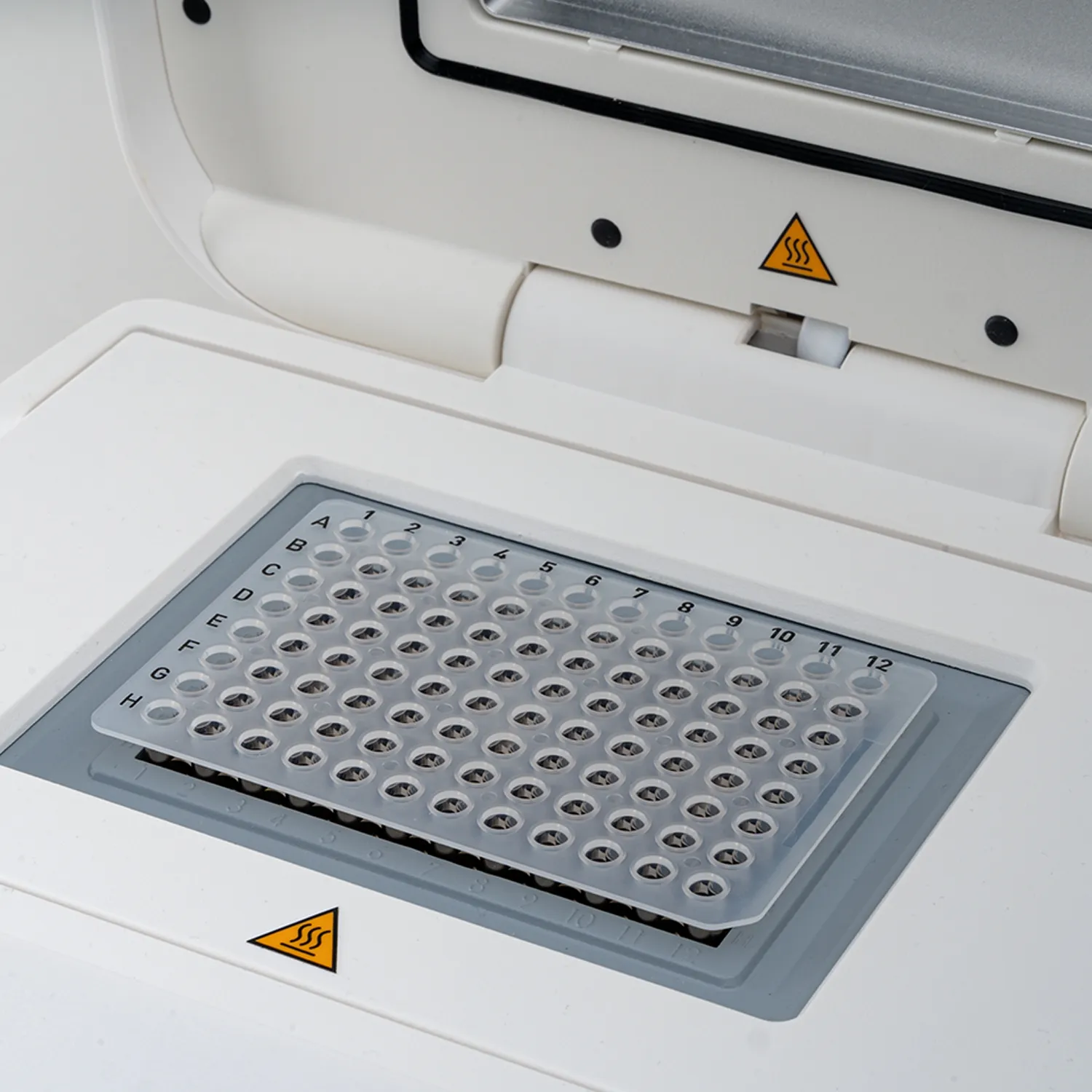

Wide options of consumables: common PCR tubes, 8-well PCR strips and 96-well PCR plates can be used
File customization, multi-file storage
Power failure protection function, automatic program recovery
Hot lid auto-off function: If module temperature is lower than 30 °C, the hot lid function will automatically turn off
Elegant design, excellent precision and accurate, reproducible results and precise PCR optimization
