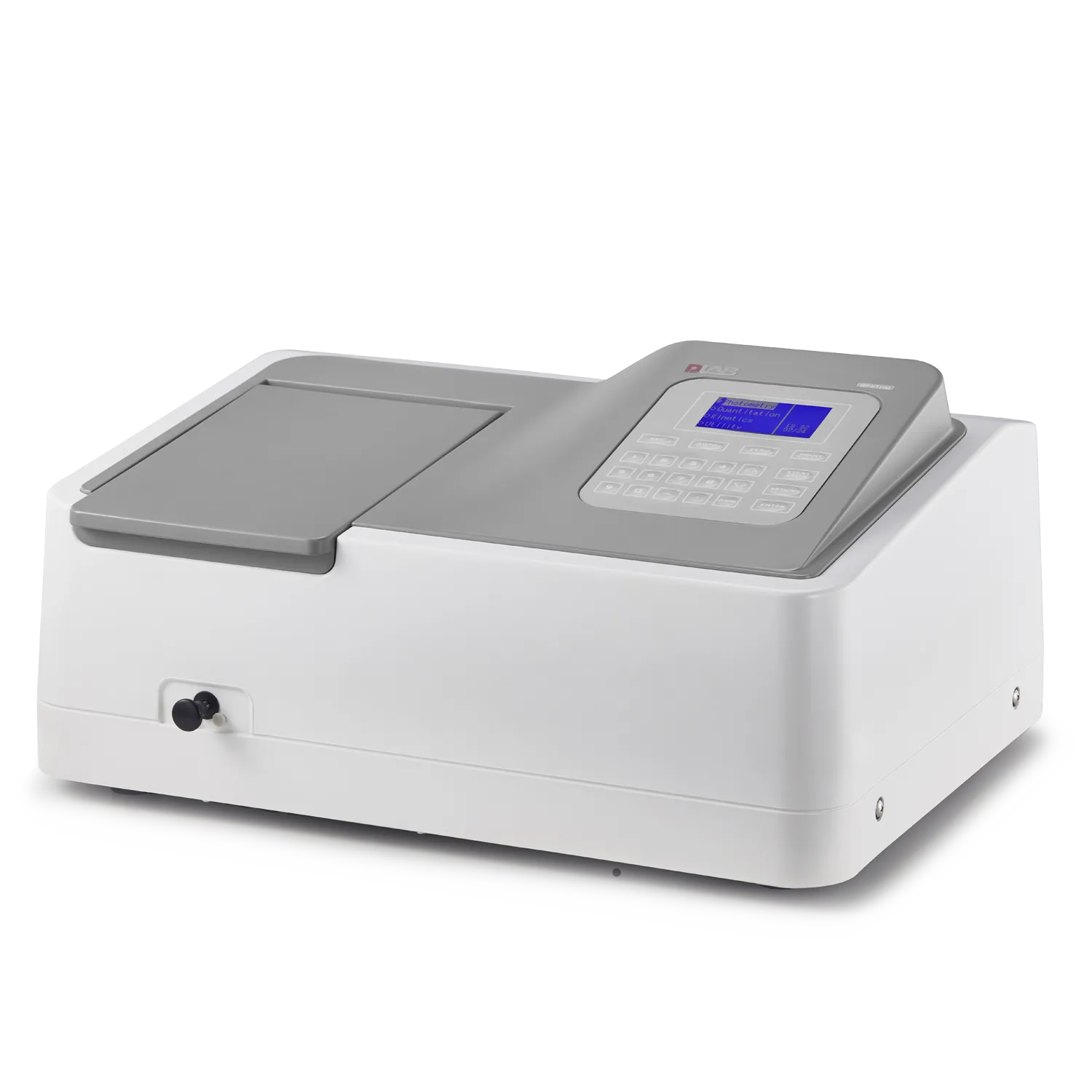

SP-V1100 Visible Spectrophotometer

SP-V1100 Visible Spectrophotometer - view 2

SP-V1100 Visible Spectrophotometer - view 3

Technical Specifications

Specification	Details
Model	SP-V1100
Optical System	Single Beam
Light Source	Tungsten Lamp(Japan HYBEC)
Spectral Bandwidth	2.0nm
Wavelength Range	320-1100nm
Wavelength Accuracy	±0.5nm
Wavelength Repeatability	≤0.3nm
Photometric Range	-0.3 – 3.0 A, 0 – 200%T
Photometric Accuracy	±0.002 A @ 0.5 A, ±0.004 A @ 1.0 A, ±0.3%T @ 100%T
Photometric Repeatability	≤0.001 A @ 0.5 A, ≤0.002 A @ 1.0 A, ≤0.15%T @ 100%T
Stability	≤0.002 A/h @ 500 nm ( after preheat 2 hours)
Stray Light	≤0.05%T @ 360nm
Sample Compartment	4-position, 10mm pathlength cuvette
Display	Dot Matrix LCD
Output	USB Port & Parallel Port( Printer)
Power Requirements	110/220VAC, 50/60Hz, 80W
Dimension[L×W×H]	475×360×225mm
Weight	11kg

Description

The SP-V1100 Visible Spectrophotometer is a spectrophotometer supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

Saves up to 200 group data & 200 standard curves
Data can be restored even after a sudden power failure
Auto setting of wavelength to calibrate the system
Wavelength range from 190 to 1100nm
Automatic Switching between Tungsten & Deuterium lamps
System is fully equipped and capable of executing all functions in stand-alone mode
Large sample for accommodate 5–100mm path length cuvettes with optional holders
Optional application software ‘Wave Professional’ provides computer control , and other functions such as spectrum scan, time scan(kinetics), multiwavelength scanning & Nucleic Acid / Protein measurement. (SP-V1100/SP-UV
Wide range of accessories are available
