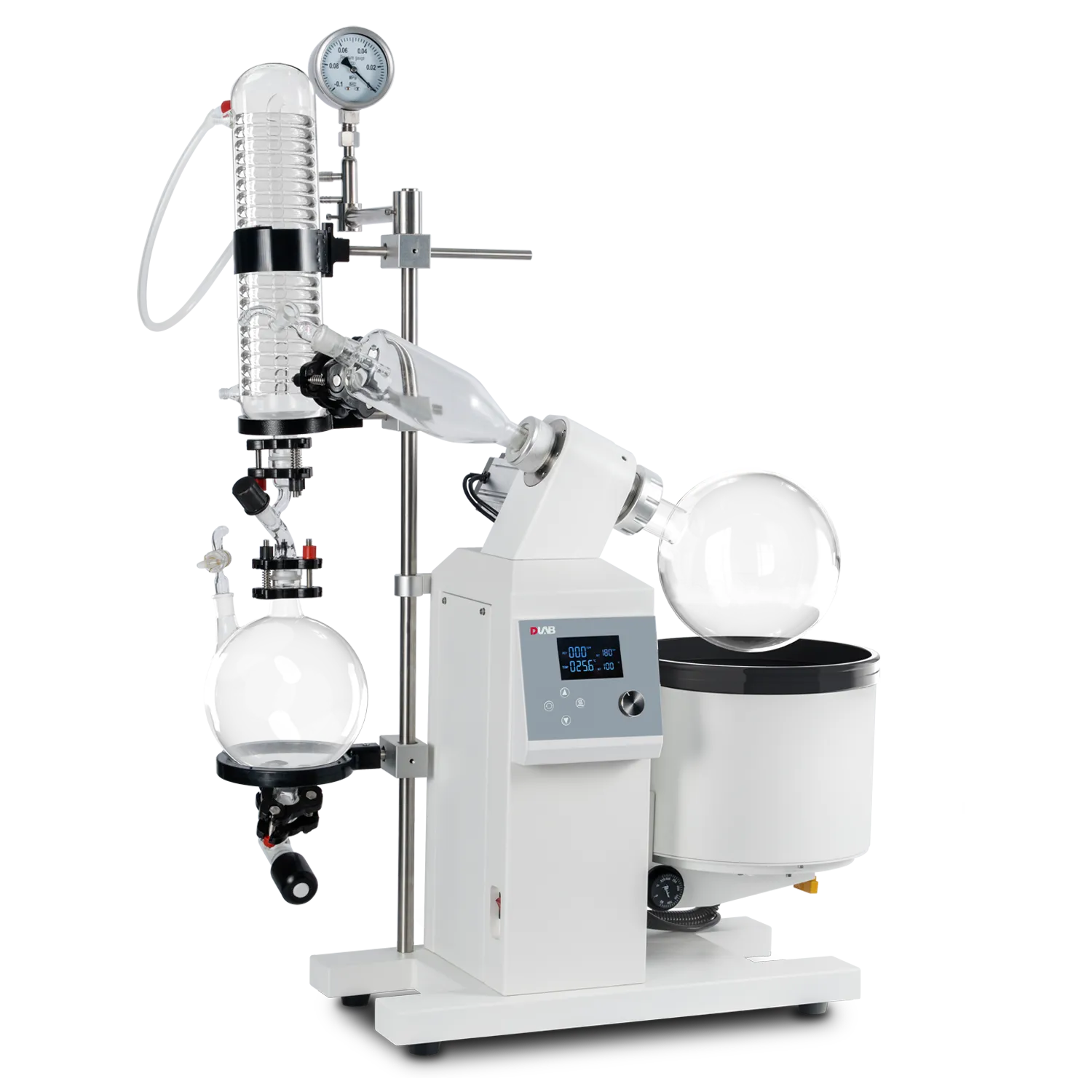

RE500-E Pilot Scale Digital Control Rotary

RE500-E Pilot Scale Digital Control Rotary Evaporator

Technical Specifications

Specification	Details
Model	RE500-E
Cat.No.	6030114124(Full Set)
Evaporating flask volume	5L
Temperature range	20-100℃
Temperature control accuracy	±1℃
Speed range	20-180rpm
Direction of Rotation	Clockwise and counterclockwise
Evaporation capacity	Max.2L/h(75% Alcohol)
Ultimate vacuum	9 mbar
Temperature control	Micro processer PID control Display
Display	LCD
Timer	Yes
Time Setting Range	0-999min
Lifting mode	Motorized
Lifting stroke	130mm
Motor Type	Lifting Motor: DC motor with brush /Rotating Motor: High voltage brush motor
Heating Power	2000W
Power	2200W
Voltage/Frequency	220V，50/60Hz
Dimension[D×W×H]	600290720
Permissible ambient temperature	5-40℃
Permissible ambient humidity	≤80%RH
Protection Class	IP20
Safety features	Motor over current protection, earth leakage protection, dry heating protection，overheat protection function
Applications	Suitable for large-scale applications in pilot production, biotechnology, pharmaceutical manufacturing, chemical engineering, cosmetics, and the food industry.

Description

The RE500-E Pilot Scale Digital Control Rotary is a rotary evaporator supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

LCD digital display with intuitive interface for operation and control.
PID controller, precise control, fast setting.
Stepless automatic motor lifting of the heat bath, smooth and silent.
The reciprocation rotation function is the most useful for concentration of sample with power or solid particles.
Double-layer high-efficiency condenser with anti-backflow design, large condensation surface area, strong evaporation capacity is a guarantee of high efficient sample recovery.
Professional air tightness system design with PTFE sealing ring, featured with heat/corrosion resistance, and high durability.
Optional vacuum controller to control the vacuum degree freely.
Keep the outer surface of the heat bath at mild temperature with proprietary heat insulation design to avoid accidental personnel burn injury.
Equipped with automatic switching valve, continuous collection can be carried out without affecting the negative pressure index of the system and solvent distillation.
Optional water bath/oil bath heating mode (standard water bath).
