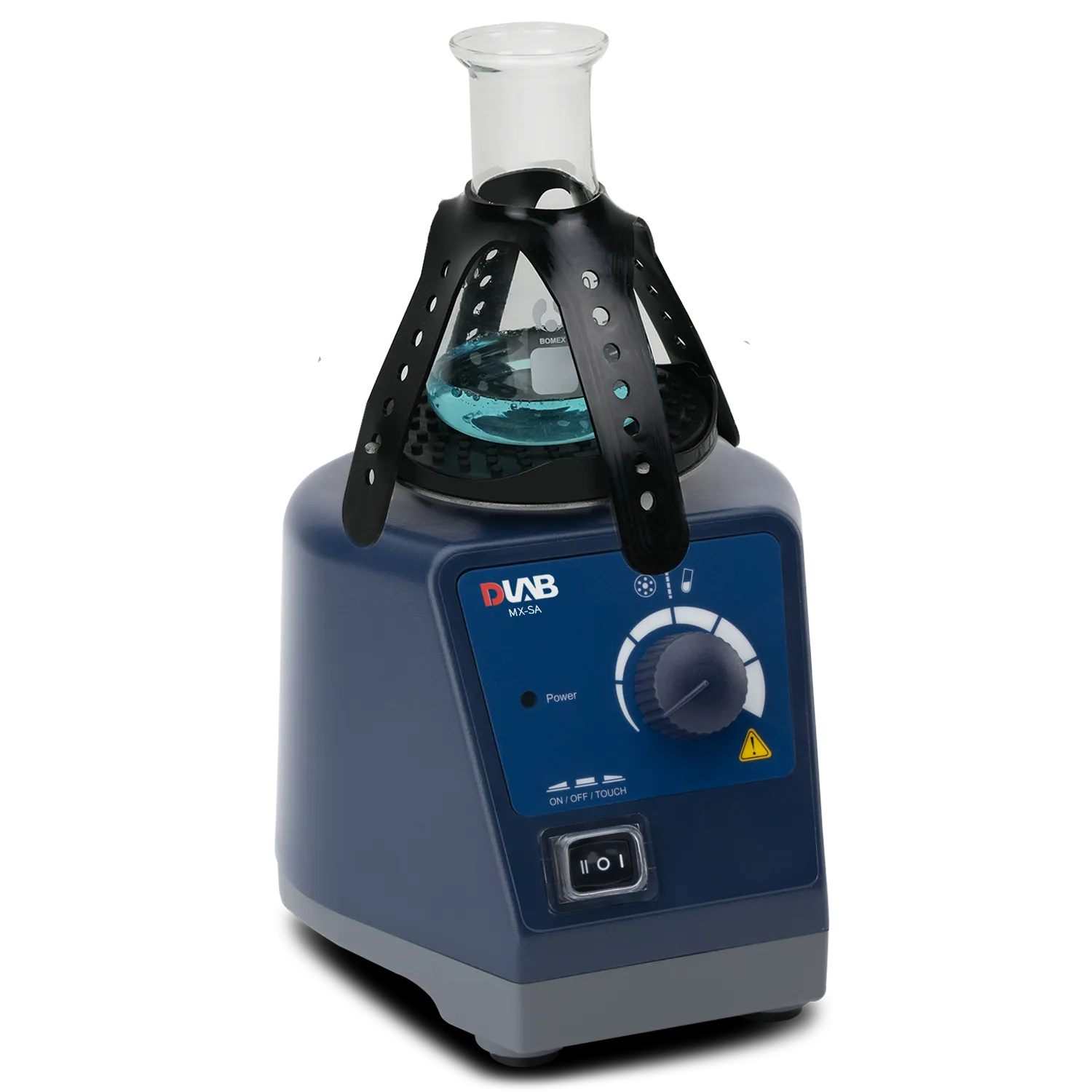

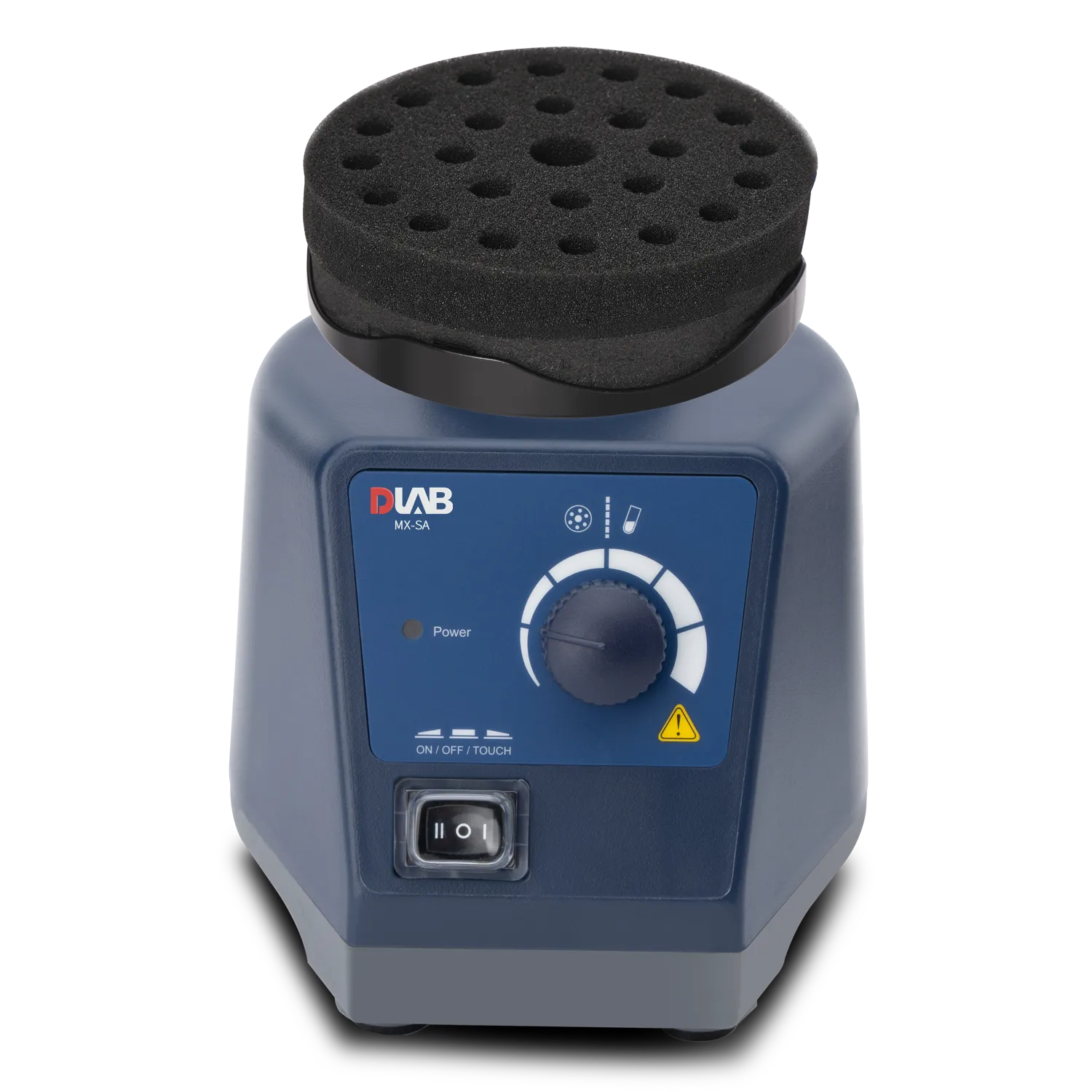

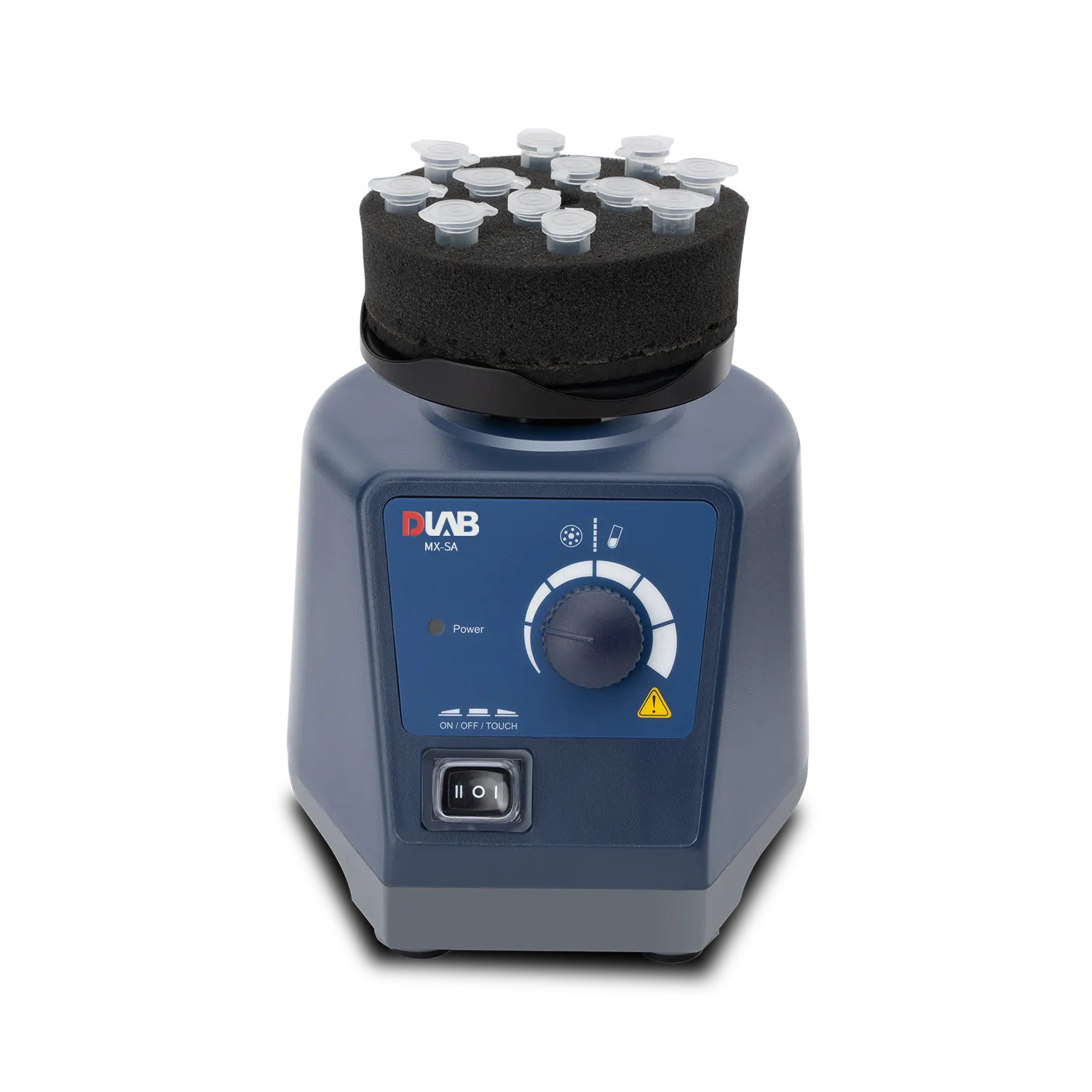

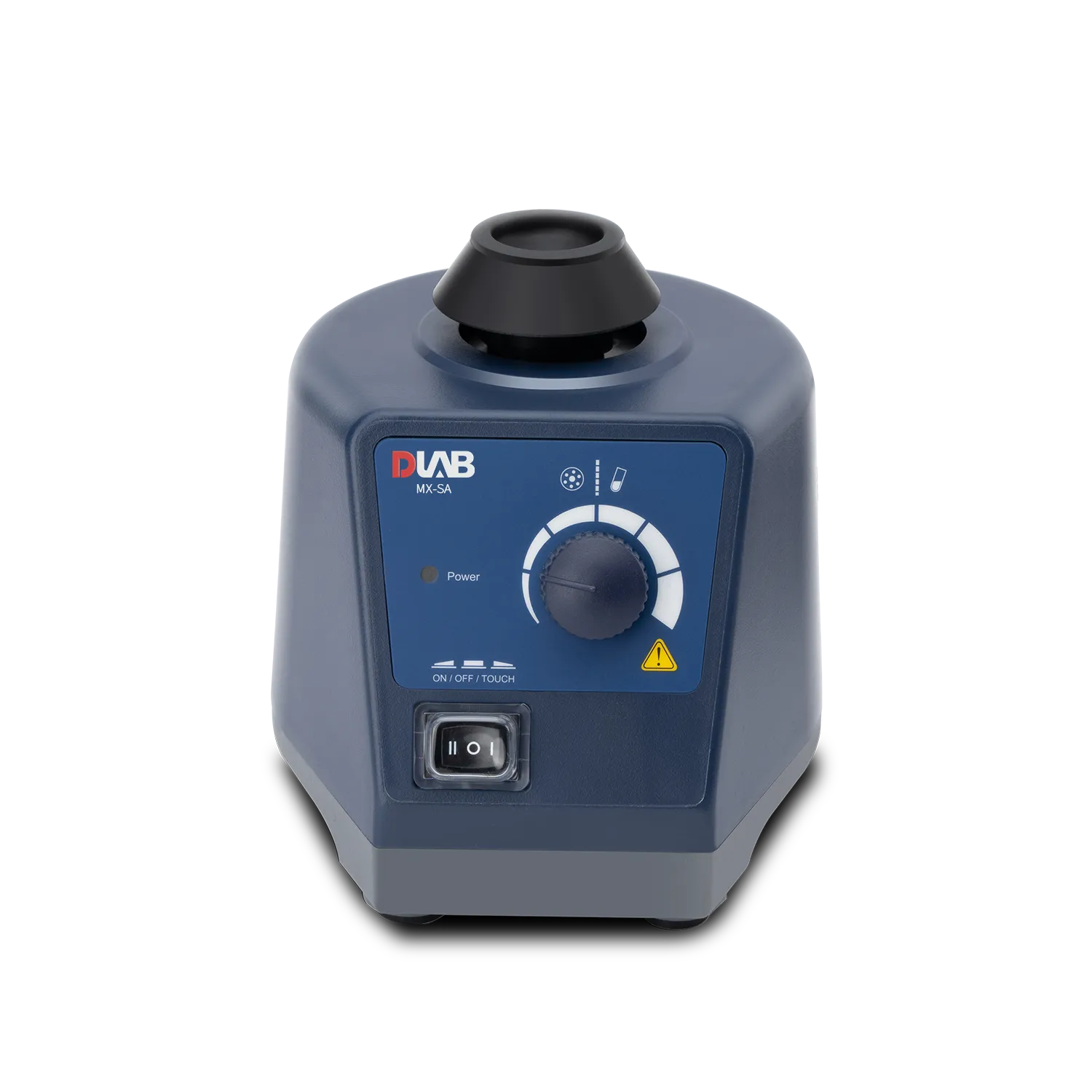

MX-SA Variable speed Vortex Mixer

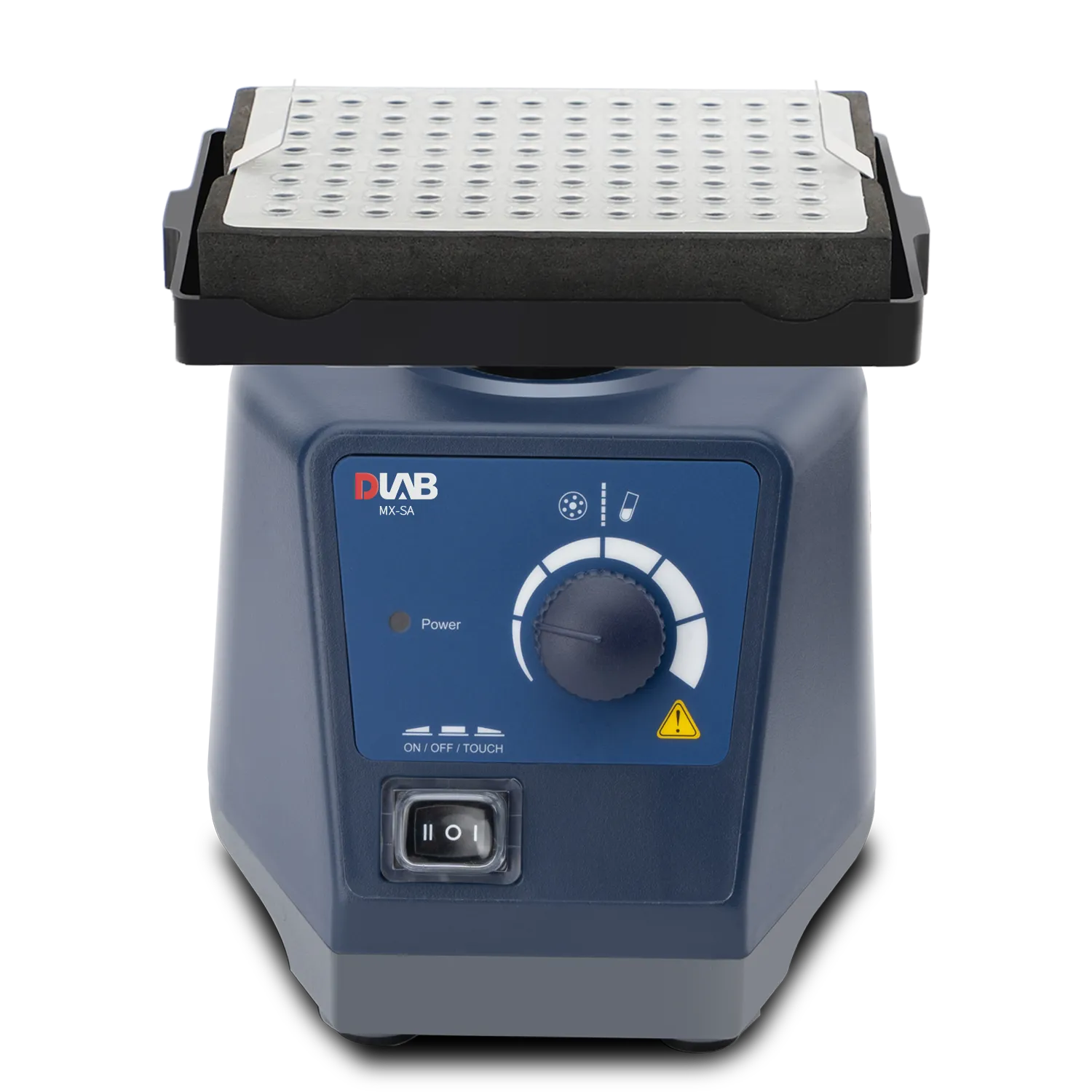

MX-SA Variable speed Vortex Mixer - view 2

MX-SA Variable speed Vortex Mixer - view 3

MX-SA Variable speed Vortex Mixer - view 4

MX-SA Variable speed Vortex Mixer - view 5

Technical Specifications

Specification	Details
Model	MX-SA
Motion type	Shaded pole motor
Orbital diameter	4mm
Speed range	0-3000rpm
Speed display	Scale
Run type	Touch operation/Continuous
Motor type	Shaded pole motor
Motor rating input	58W
Motor rating output	10W
Power	60W
Voltage	100-120V/200-240V
Frequency	50/60Hz
Dimension[W×H×D]	127×130×160mm
Weight	≥4.0kg
Permissible ambient temperature	5-40℃
Permissible relative humidity	80%RH
Protection class	IP20

Description

The MX-SA Variable speed Vortex Mixer is a vortex mixer supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

Variable speed of 0 to 3,000rpm for gentle shaking to rapid mixing of samples
Touch or continuous operation mode
Includes a standard top head for mixing a single test tube or other small vessel up to 30mm in diameter
Electronic speed control maintains constant speed even during changes in load
Steel base with specially designed vacuum suction feet provides stability and dampens vibration
Robust aluminum-cast construction
Thermosetting powder coating , Antimicrobial technology
