MS-H-PROT LCD Digital Magnetic Hotplate Stirrer

MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer

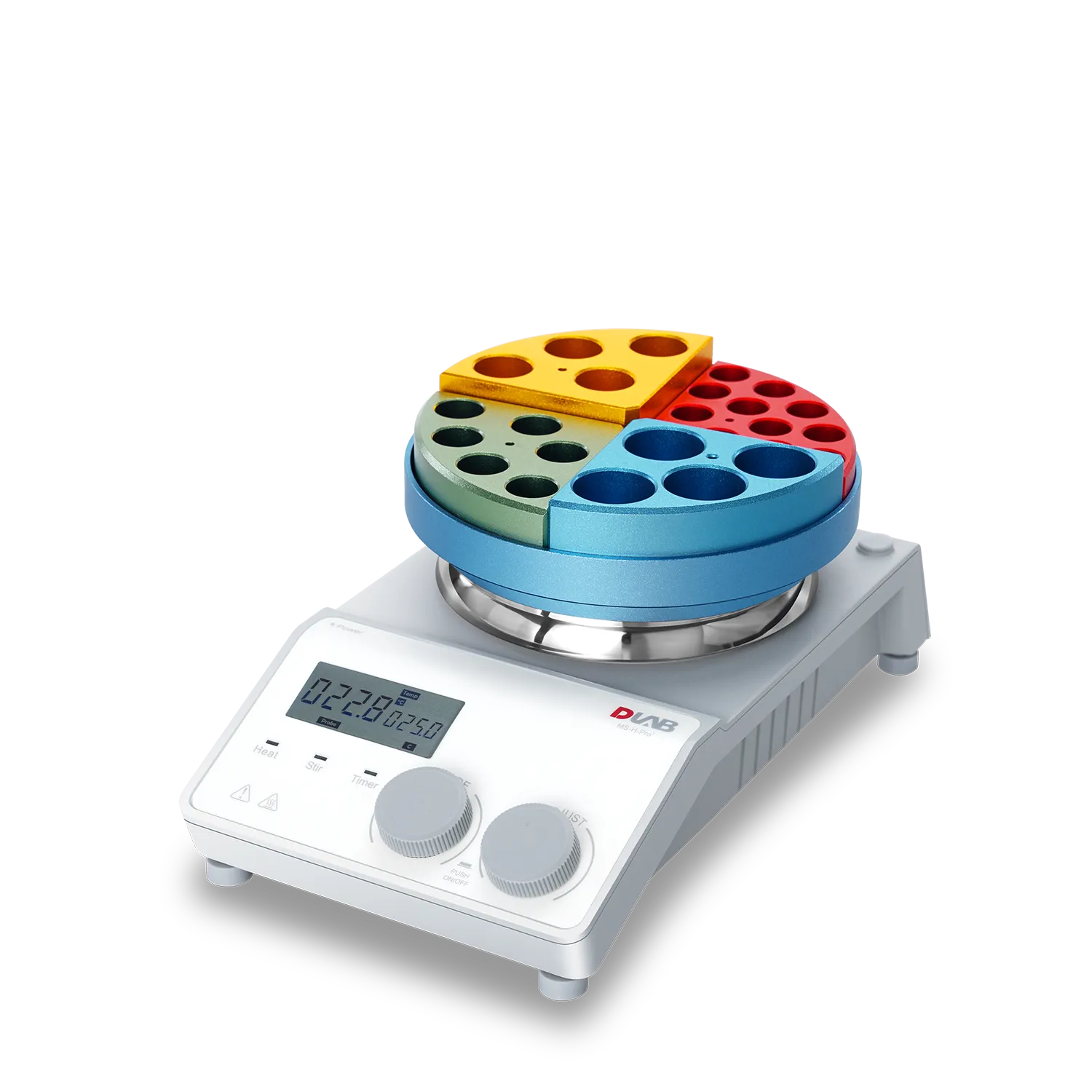

MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer - view 2

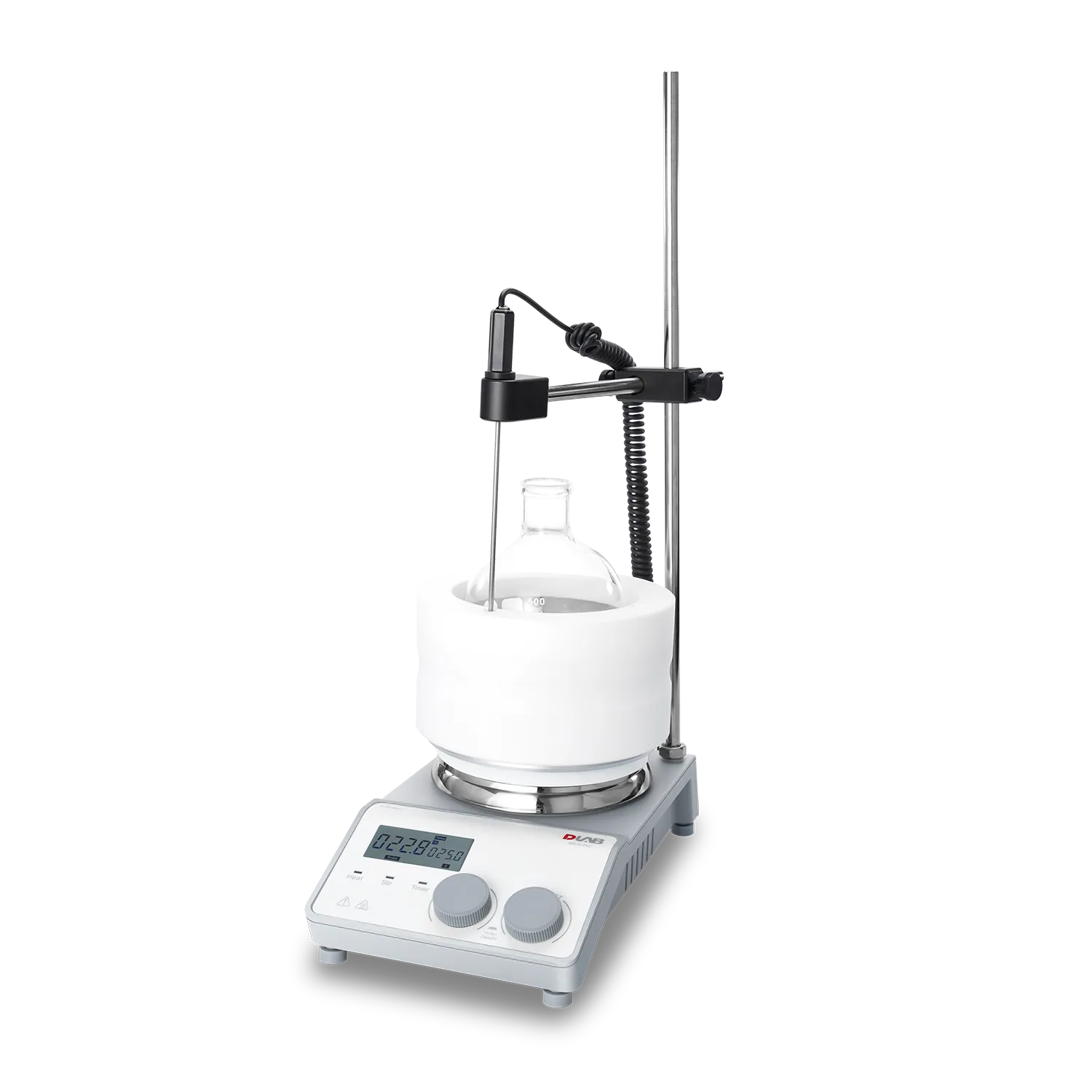

MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer - view 3

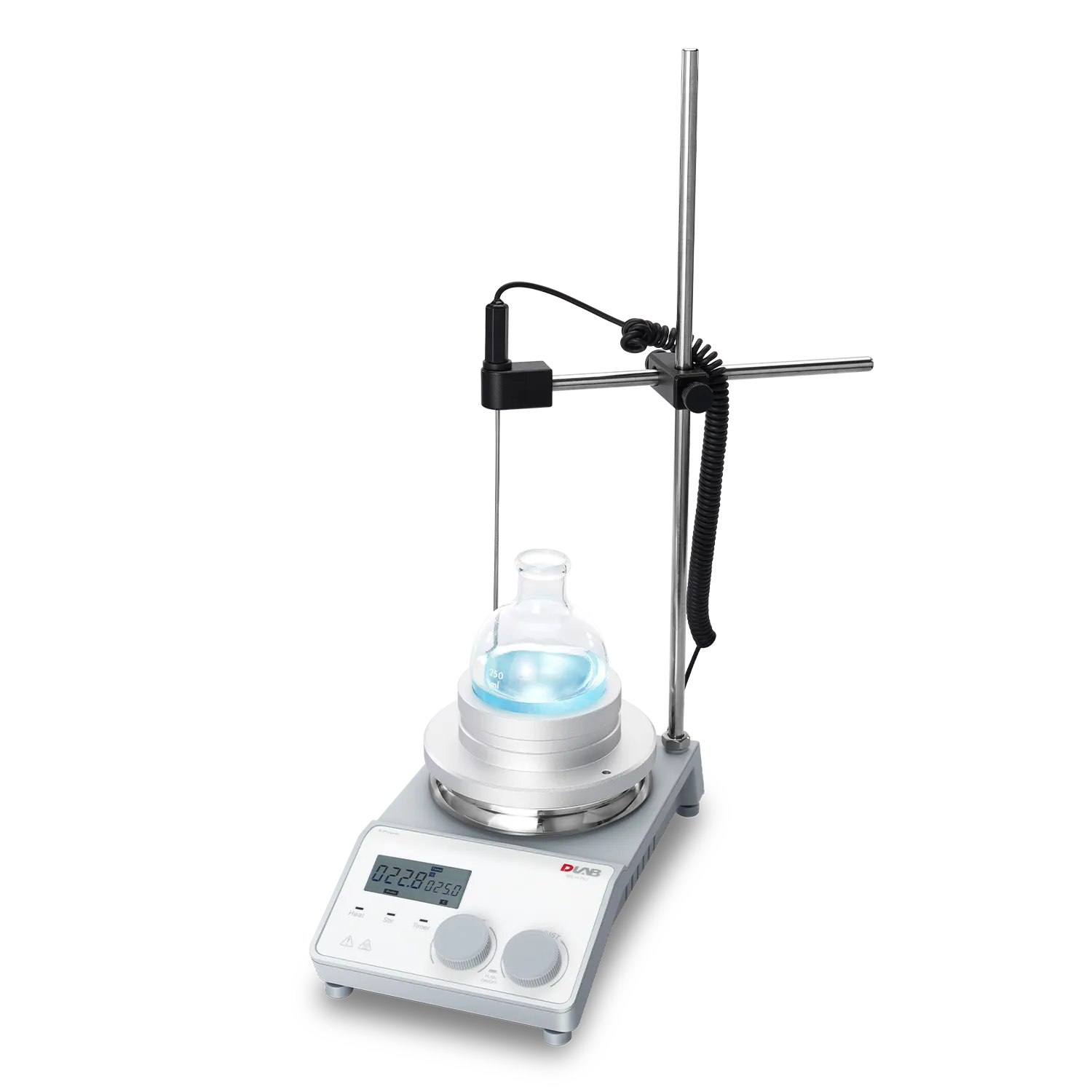

MS-H-PROT LCD Digital Magnetic Hotplate Stirrer with Timer - view 4

Technical Specifications

Specification	Details
Model	MS-H-ProT
Cat.No.	8030201110
Work plate Dimension	Ø135mm(5 inch)
Work plate material	stainless steel cover with ceramic coating
Max. stirring quantity [H2O]	20L
Speed range	100-1500rpm resolution ±1rpm
Speed display	LCD
Temperature display	LCD
Heating temperature range	Room Temp.-340℃, increment 1℃
Temperature control accuracy	±1℃(<100℃) ±1%(>100℃)
Heating temperature control accuracy test conditions	1 L beaker with 500 mL water, 50 °C, 40 mm magnetic stir bar, 500 rpm; 1 L beaker with 500 mL silicone oil, 120 °C, 40 mm magnetic stir bar, 500 rpm.
Temperature display accuracy	±0.1℃
External temperature sensor	PT1000 (accuracy ±0.2℃)
“Hot” warning	50℃
Overheating temperature protection	420℃
Motor type	Brushless DC motor
Stirring positions	1
Max. magnetic bar length	80mm
Data connector	RS232
Timer function	1min-99h59min
Protection class	IP21
Motor rating output	10W
Heating power	500W
Power	550W
Voltage,Frequency	100-120V/200-240V，50/60Hz
Dimension [WxDxH]	160x280x100mm
Weight	2.8kg
Permissible ambient temperature	5-40℃
Permissible ambient humidity	80% RH

Description

The MS-H-PROT LCD Digital Magnetic Hotplate Stirrer is a magnetic hotplate stirrer supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

Product Features:
Brushless DC motor is maintenance free and explosion-proof
Digital temperature control with max. temperature at 340°C
Digital speed control with max. speed up to 1500rpm
Max. stirring quantity of H2O at 20L
Safety circuits provide overheating protection
The “HOT” warning will flash if the plate temperature is above 50°C even when the hotplate is turned off
Wide range timer function from 1min to 99h59min
High-resolution LCD display shows actual temperatures，speed and time
External temperature control is possible by connecting the temperature sensor(PT 1000) with accuracy at ±0.2°C
