The YY-PR Fume Extraction Arm is a flexible local exhaust solution designed to capture fumes, vapors and airborne contamination directly at or near the source of generation. Its articulated design allows the extraction hood to be positioned close to the working area, helping to control contamination at the source.
The extraction arm incorporates multiple articulated sections and rotating joints for flexible positioning around the laboratory workstation. The arm joints provide 360° rotation, allowing the fume collector to be moved and positioned according to the location of the contamination source.

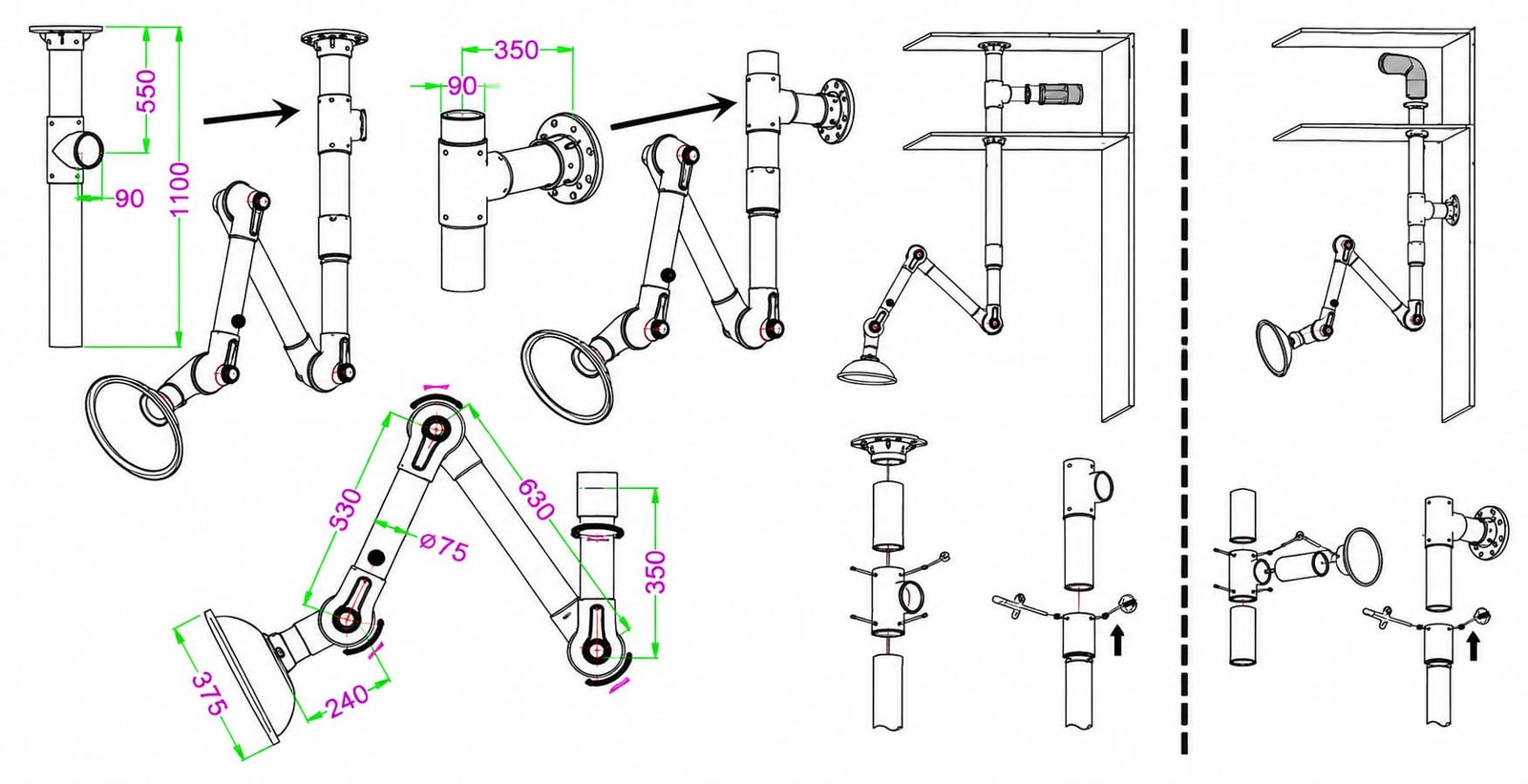

The technical drawing indicates an articulated arm configuration with arm sections of approximately 530 mm and 630 mm, providing an extended and flexible working reach. The main articulated joint diameter is Ø75 mm.
The system can be configured for different installation requirements, including ceiling-mounted and wall-mounted fixed-base arrangements. The drawing shows a fixed vertical mounting section of approximately 1100 mm and a wall-mounted extension dimension of approximately 350 mm.
The system is specified with an Ø110 mm air outlet for connectors. The exhaust pipe is manufactured from high-density PP material, with aluminum pipe available as an alternative configuration.
The large articulated fume collector provides localized capture at the working area. The drawing indicates a collector diameter of approximately Ø375 mm, with a collector connection dimension of approximately 240 mm.
The fume collector is manufactured from high-density PP/PC material, with aluminum available as an alternative configuration.

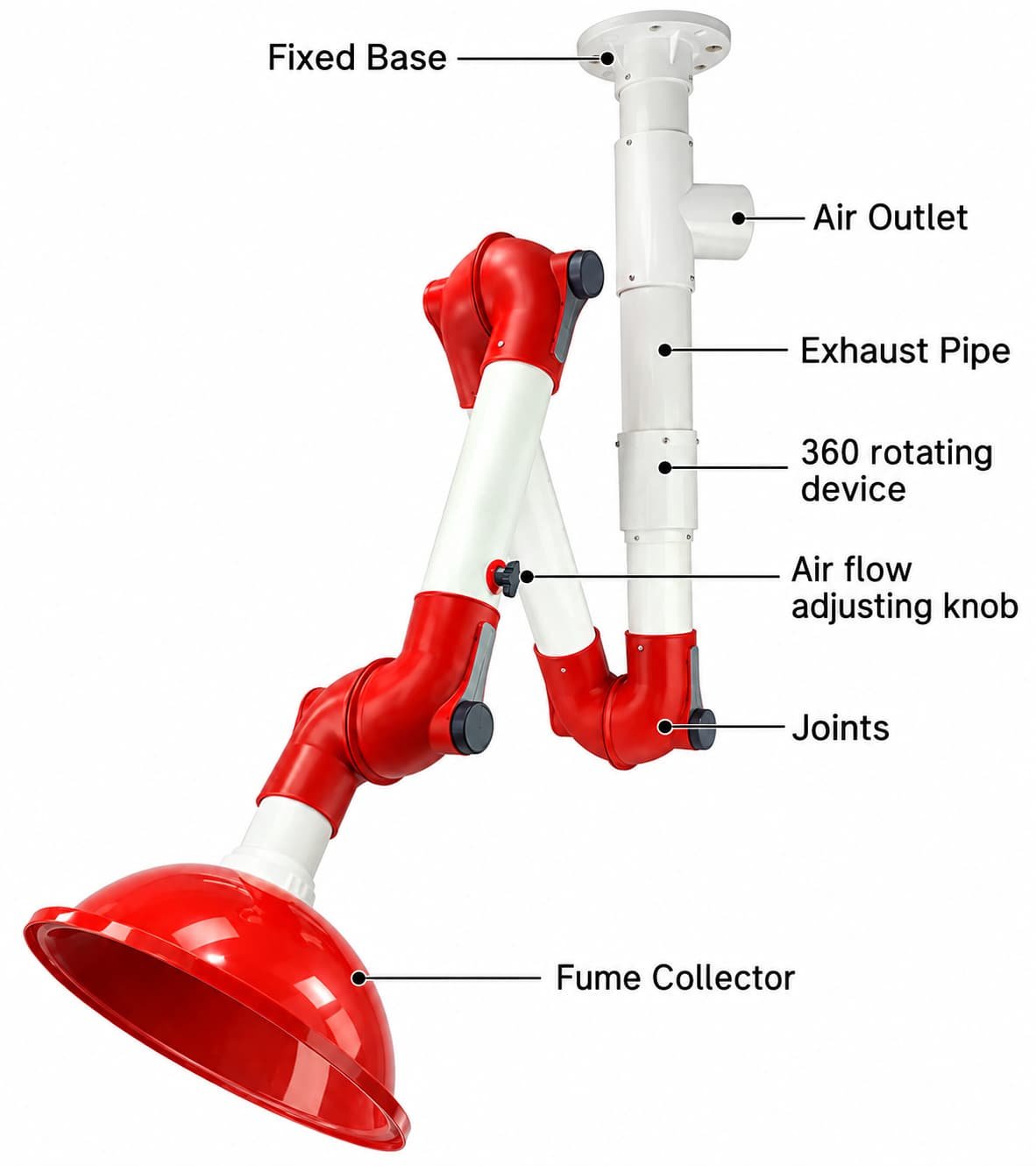

An integrated airflow adjusting knob allows the airflow to be adjusted according to the operating requirement.
The articulated joints are manufactured from high-density PP material and provide 360° rotation. The joint construction is designed for convenient disassembly and cleaning, supporting routine maintenance of the extraction system.
| Specification | Details |
|---|---|
| Product | Fume Extraction Arm |
| Model | YY-PR |
| Fixed Base | Ceiling Type / Wall Type Available |
| Vertical Fixed Base Dimension | 1100 mm |
| Fixed Base Connection Diameter | Ø90 mm |
| Wall Mount Extension | 350 mm |
| Air Outlet | Ø110 mm for Connectors |
| Exhaust Pipe Material | High-Density PP |
| Alternative Exhaust Pipe | Aluminum Available |
| Joint Material | High-Density PP |
| Joint Diameter | Ø75 mm |
| Joint Rotation | 360° Rotatable |
| Arm Section | Approx. 530 mm |
| Arm Section | Approx. 630 mm |
| Rotating Device | 360° Rotating |
| Airflow Adjustment | Airflow Adjusting Knob |
| Fume Collector Material | High-Density PP / PC |
| Fume Collector Diameter | Approx. Ø375 mm |
| Collector Connection Dimension | Approx. 240 mm |
| Alternative Collector | Aluminum Available |
| Joint Maintenance | Easy to Disassemble and Clean |
The Fume Extraction Arm – YY-PR is a flexible local fume extraction system designed to capture fumes, vapors and airborne contamination directly at or near the source of generation. Its articulated construction allows the extraction hood to be positioned close to the working area, helping to control contamination at the source and reduce the spread of airborne contaminants within the facility.
The extraction arm features a high-density PP exhaust pipe with 360° rotatable high-density PP joints, providing flexible positioning and convenient operation. The articulated arm incorporates approximately 530 mm and 630 mm arm sections with a Ø75 mm joint diameter, while the integrated rotating mechanism provides 360° movement.
The system can be installed using a ceiling-type or wall-type fixed base. The illustrated configuration includes an approximately 1100 mm vertical mounting section and a 350 mm wall-mount extension. The air outlet is designed for Ø110 mm connectors.
The large high-density PP/PC fume collector provides localized capture at the working area and has an approximately Ø375 mm collector diameter. An airflow adjusting knob allows convenient airflow adjustment, while the joints are designed for easy disassembly and cleaning. Aluminum alternatives are available for the exhaust pipe and fume collector.
The YY-PR Fume Extraction Arm is suitable for chemical laboratories, school and university laboratories, research facilities, workshops and other areas requiring localized extraction of fumes and airborne contaminants.
