Technical Specifications

Specification Details
Model DMS5
Cat.No. 8021542210
Work plate Dimension Ø135mm(5inch)
Work plate material Aluminum with ceramic coating
Max. stirring quantity[H2O] 20L
Speed range 50~1500rpm,increment 1rpm
Speed display LCD
Motor type Brushless DC motor
Stirring positions 1
Max.magnetic bar length 80mm
Protection class IP42
Motor output Power 10W
Power 30W
Voltage,Frequency 100-240V,50/60Hz
Dimension[WxDxH] 270x175x108mm
Weight 1.8kg
Permissible ambient temperature 5-40℃
Permissible ambient humidity 80%RH

Description

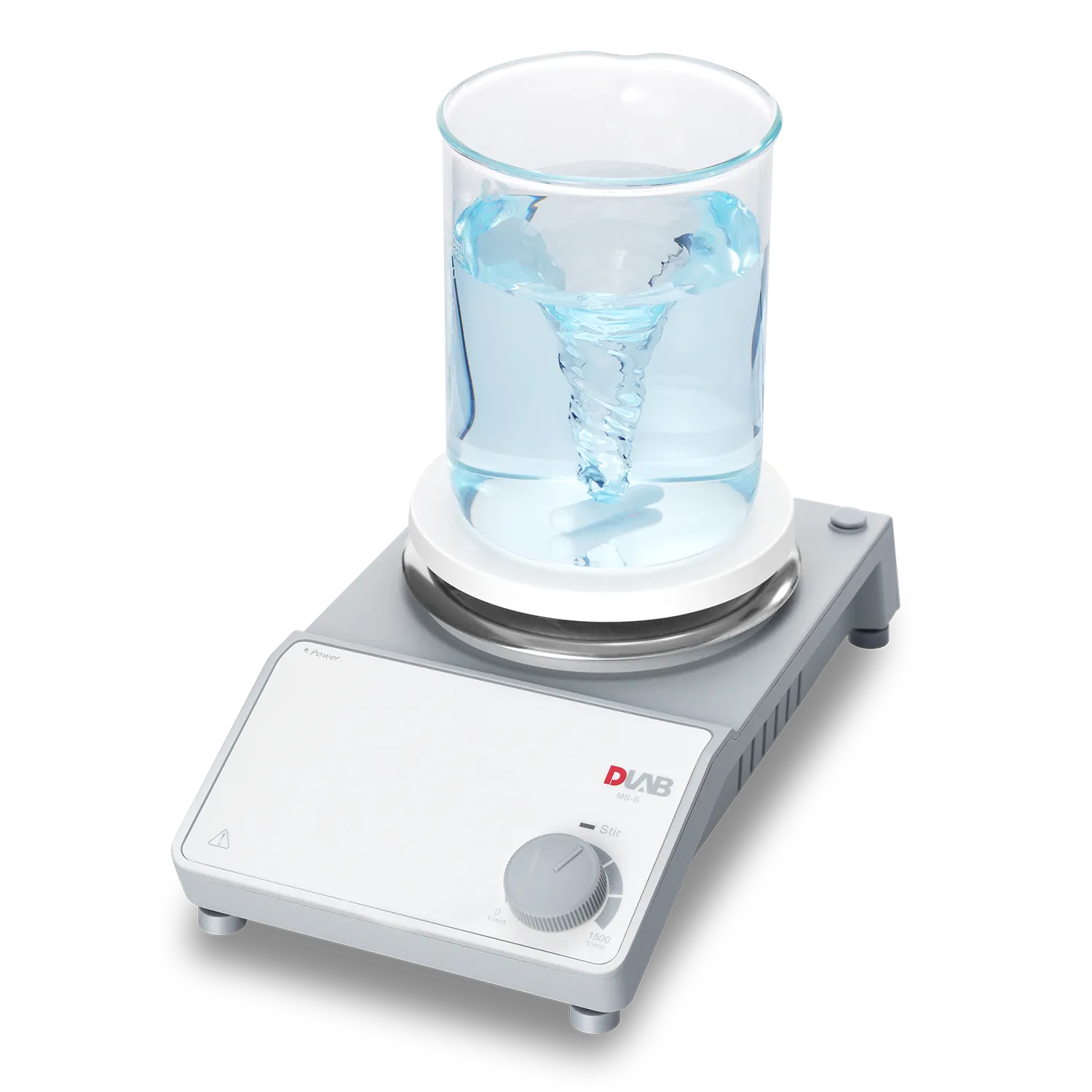

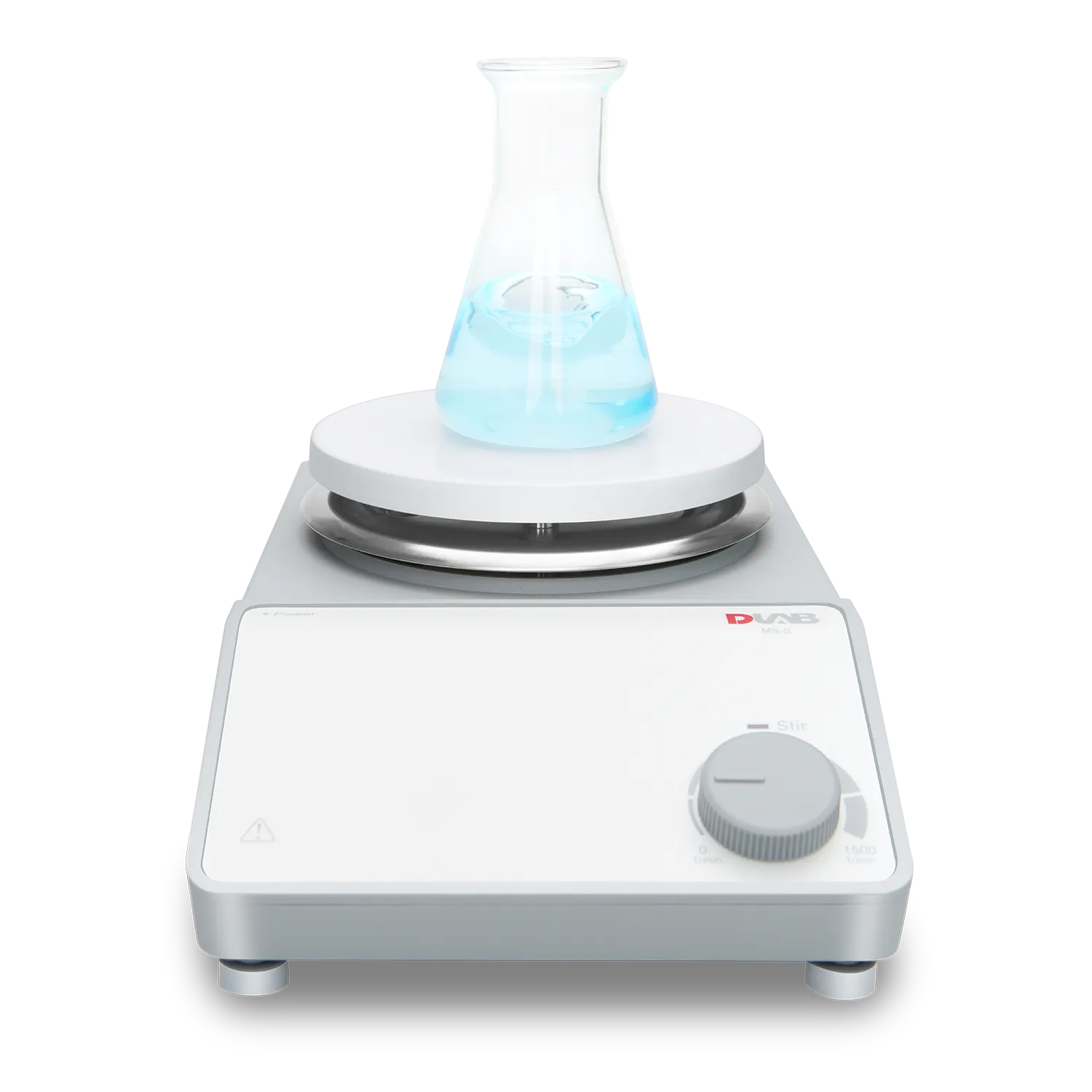

The DMS5 LCD Magnetic Stirrer with Timer is a magnetic stirrer supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

  • Product Features:
  • Corrosion-resistant all-metal housing provides efficient heat dissipation and reliable fire protection.
  • High-efficiency diversion platform and waterproof edge design help prevent liquids from entering the unit and corroding electronic components.
  • Selected high-temperature-resistant permanent magnets provide strong stirring performance, making the unit suitable for stirring viscous liquids.
  • Safety lock prevents accidental changes to the operating status.
  • Buzzer alarm: when the unit malfunctions or the timer countdown ends, the buzzer emits a “beep-beep-beep” alert.
  • Dual independent safety circuits continuously monitor the unit. In the event of a short circuit, the unit automatically cuts off power to ensure operator safety.
  • Brushless DC motor delivers spark-free operation, long service life, low noise, maintenance-free performance, and smooth running.
  • LCD display shows both set values and real-time values for speed and time, providing clear and intuitive operation.
  • Timer function with a timing range of 1 min to 99 h 59 min.

0.00 ر.س

Available on backorder
