DM0424 Low Speed Centrifuge

Technical Specifications

Specification	Details
Model	DM0424
Cat.No.	9148001125
Speed Range	500-4000rpm increment: 100rpm
Max. RCF	2500×g
Speed Accuracy	±100rpm
Rotor type	A12-10P、A8-15P、A24-15P、S6-15、S4-50
Rotor Capacity	Swing6×15mL \| Swing4×50mL \| Angle 24×15 mL \| Angle 12×10mL/8×15mL
Run Time	1-99min, HOLD
Display	LCD
Safety Devices	Automatic internal diagnosis
Acceleration/Braking time[Sec]	3↑4↓steps
Program	Blood: 3200rpm,10min \| Urine: 1800rpm,5min \| Faecal: 1300rpm,10min.
Motor	Brushless DC motor
Power	Single phase, 100V-240V, 50Hz/60Hz
Dimension[WxDxH]	364X440X268mm
Weight	13.2kg

Description

The DM0424 Low Speed Centrifuge is a low-speed centrifuge supplied for laboratory and research use in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.

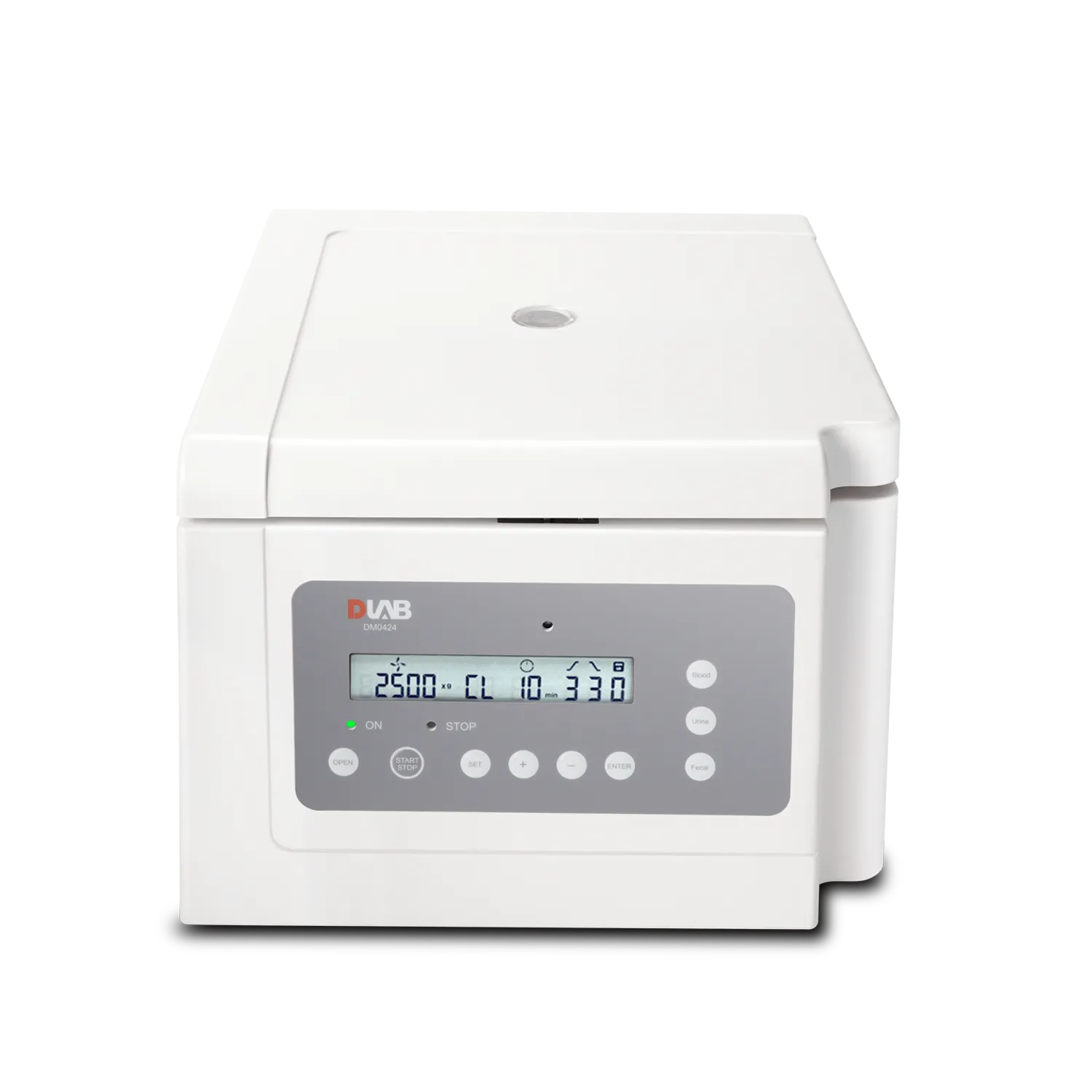

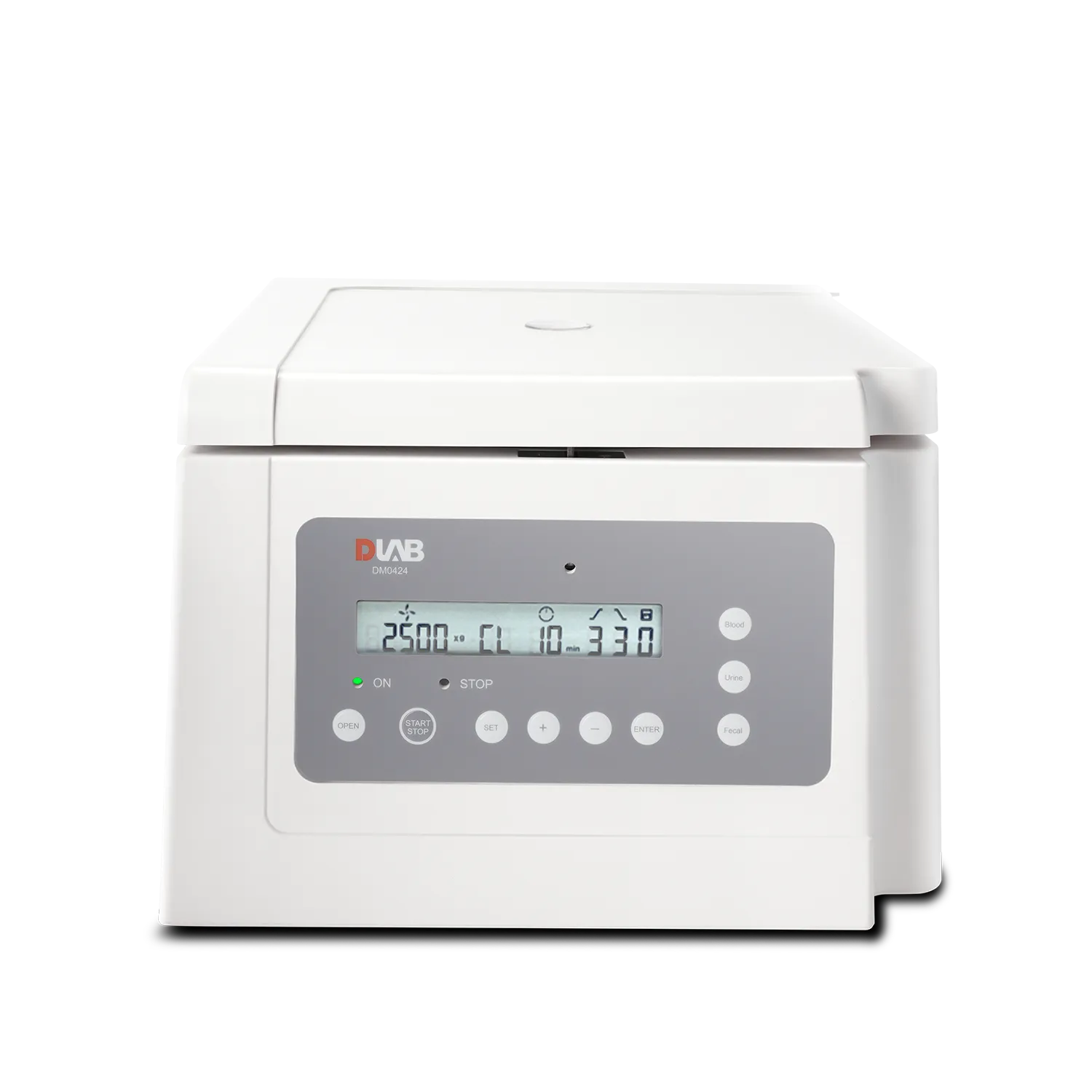

• Quiet, compact, and convenient with LCD display
• Maximum up to 4000rpm Speed can be set in RPM/RCF, with 3 customizable routine programs (Blood, Urine & Faecal)
• 3 acceleration level & 4 level deceleration

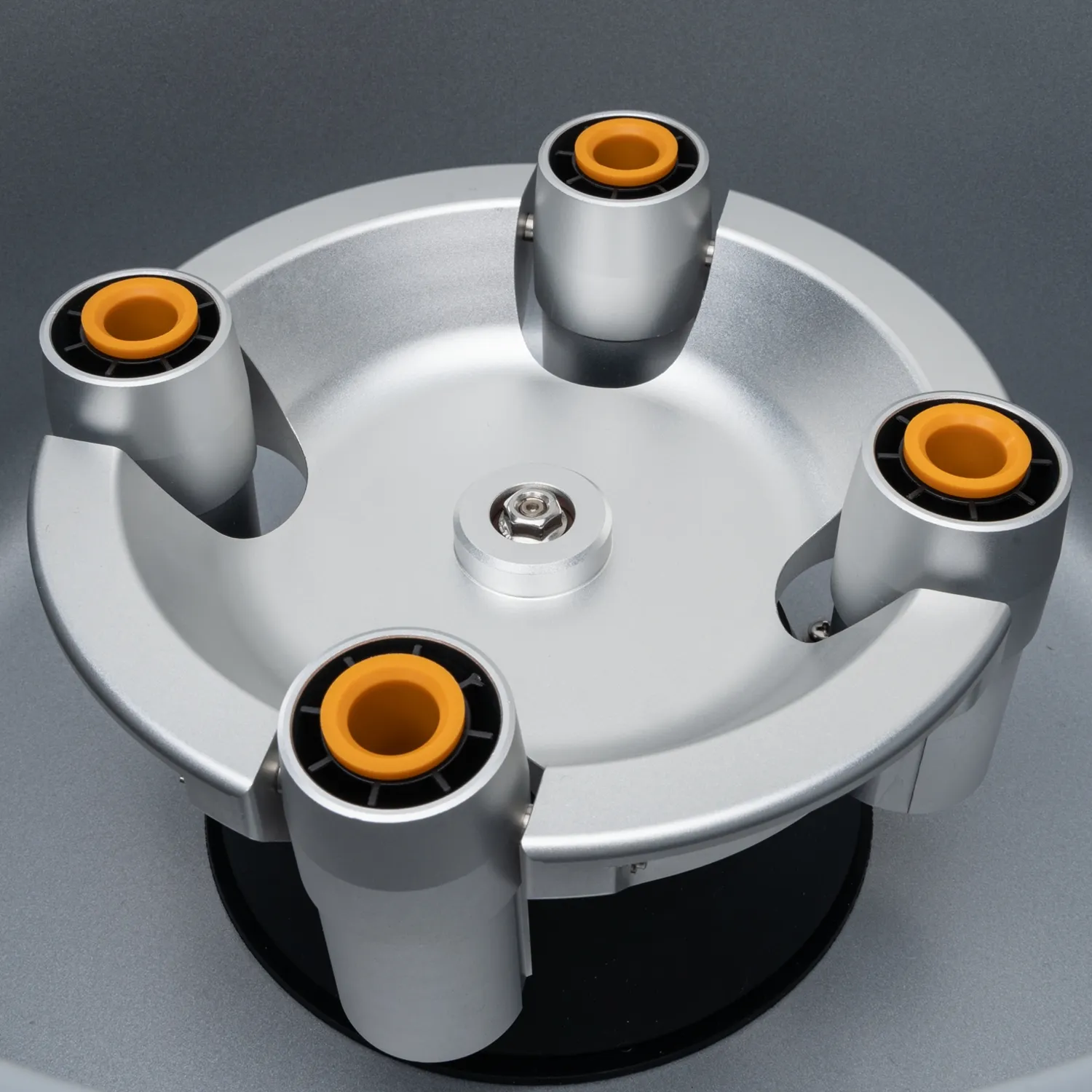

• Maximum capacity 50mL ×4, Accommodating different sizes of blood collection tubes and centrifuge tubes suitable for swing out rotor and angle rotor
• Automatic internal diagnosis and self-detection
• Maintenance-free brushless DC motor
Product certification:
Complies with applicable CE requirements.
