DM Density Meter Saudi Arabia

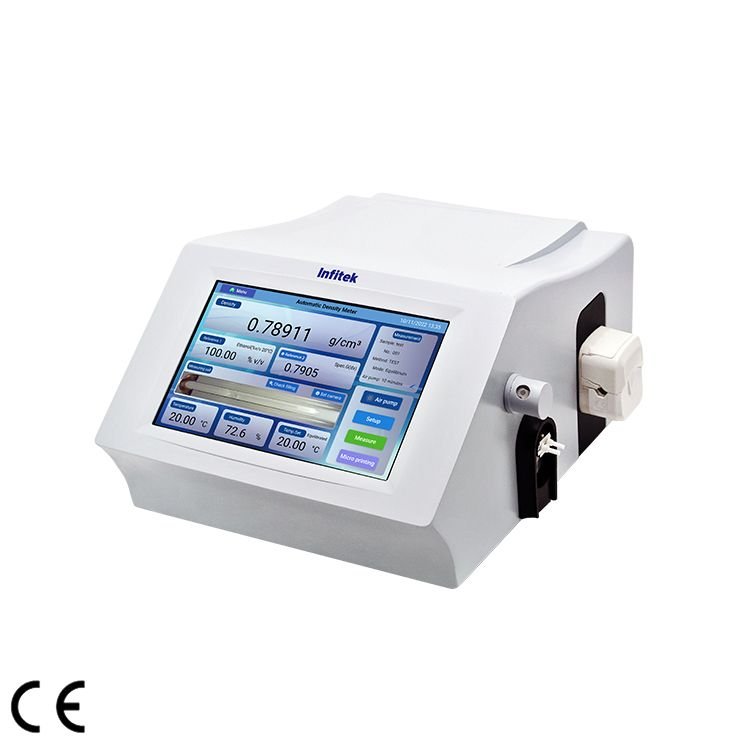

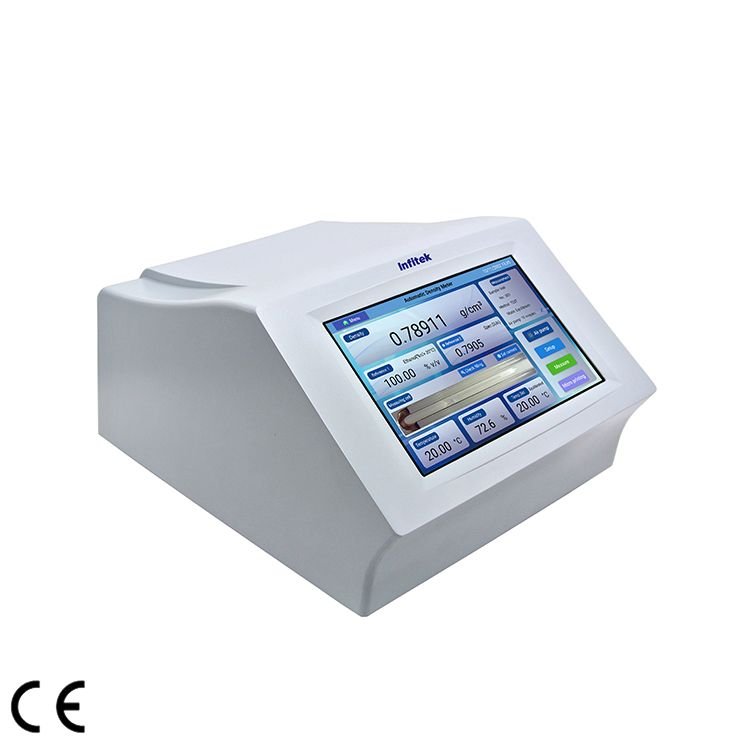

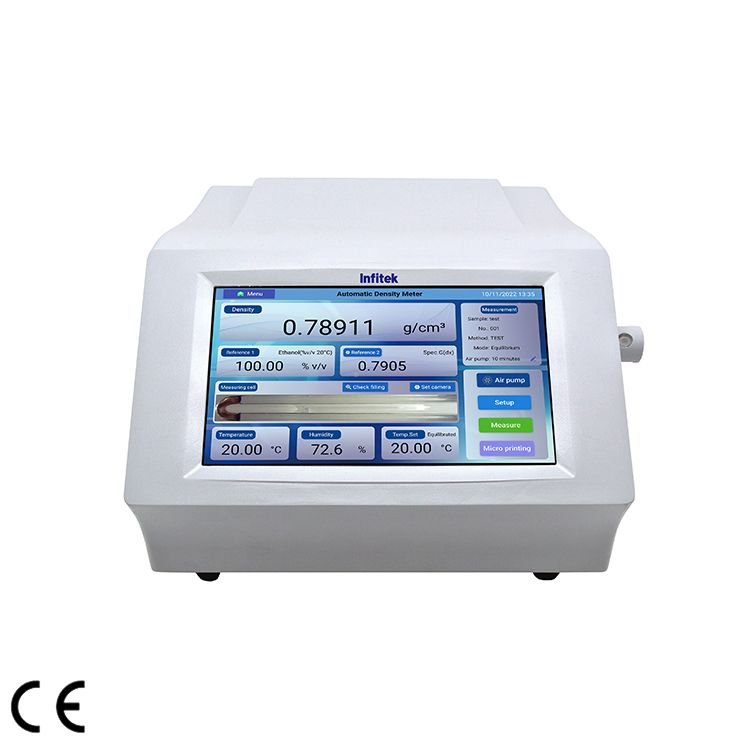

Density Meter, DM Series

SKU DM Category Nutritional Component Analysis Tags density meter, density meter Dammam, density meter Riyadh, density meter Saudi Arabia, DM

Technical Specifications

Beverage Industry	Measuring sugar concentration, food additive indicators , soft drink quality control
Food Industry	Grape juice, tomato juice, fructose syrup, vegetable oil and canned food processing
Brewing Industry	Detection of alcohol concentration of liquor, yellow wine, red wine, beer, fruit wine, rice wine, etc.
Chemical Industry	Chemical urea, detergent, glycol, acid, alkali and polymer density testing
Pharmaceutical Industry	Quality control of raw materials and finished products, determination of specific gravity and density (relative density) of pharmaceutical preparations
Petrochemical Industry	Crude oil API index, gasoline, diesel, kerosene density detection, additive mixing ratio process monitoring
Machining	Cleaning agent testing for metal processing, machine manufacturing, automotive industry, and electronic appliances
Flavors and Fragrances	Edible flavors, daily flavors, tobacco flavors, food additives and spices
Testing Agency	Standard laboratories, statutory testing agencies, third-party testing of liquid density measurement

Model	DM-3005	DM-3005A	DM-3004
Measuring Range
Density	0.00000 g/cm³ to 3.00000 g/cm³	0.0000 g/cm³ to 3.0000 g/cm³	0.0000 g/cm³ to 3.0000 g/cm³
Temperature	5 ℃ to 70 ℃	5 ℃ to 70 ℃	5 ℃ to 50 ℃
Accuracy
Density	±0.0001 g/cm³	±0.0003 g/cm³	±0.0005 g/cm³
Temperature	±0.05 ℃	±0.05 ℃	±0.1 ℃
Repeatability
Density	±0.00005 g/cm³	±0.0001 g/cm³	±0.0002 g/cm³
Precision
Temperature	±0.02 ℃	±0.02 ℃	±0.05 ℃
Digital Resolution
Density	0.00001 g/cm³	0.0001 g/cm³	0.0001 g/cm³
Temperature	0.01 °C	0.01 °C	0.01 °C
Feature
Measuring mode	Density (g/cm³) Density (kg/cm³) 4 ℃ / 20 ℃ / 25 ℃ / Synthermal specific gravity of water More than 30 built-in units such as Density, Specific gravity, Alcohol, API, Brix, Urea, User-defined, etc.	Density (g/cm³) Density (kg/cm³) 4 ℃ / 20 ℃ / 25 ℃ / Synthermal specific gravity of water User-defined	Density (g/cm³) Density (kg/cm³) 4 ℃ / 20 ℃ / 25 ℃ / Synthermal specific gravity of water
Injection	Manual / Automatic (peristaltic pump)
Injection check	1080P HD camera, video check, photo check
Calibration	Dry air & Distilled water, Multi-point calibration
Drying pump	Built-in DC air pump, connected to the drying bucket, can provide continuous dry air
Atmospheric pressure compensation	Built-in atmospheric pressure sensor, automatically compensates for atmospheric pressure
User management permissions	Four levels	Four levels	/
Electronic signature	Yes	Yes	/
Audit trail	Optional FDA software	Optional FDA software	/
Report format	PDF / Excel
Technical Data
U-tube	Quartz glass
Minimum sample volume	Approx. 2mL to 3 mL
Temperature control	Peltier (high precision platinum resistance, digital PID regulation, PWM temperature control)
Display	10.1″ color LCD touchscreen
Operating system	Android
Internal storage	128G
User management	200	200	/
Method management	200	200	100
Test result record	200,000	200,000	100,000
Communication interfaces	RS232, USB, RJ45	RS232, USB, RJ45	RS232, USB
Connect PC, LIMS	Yes	Yes	Yes
Printer (Optional)	Thermal printer Stylus printer Wifi printer	Thermal printer Stylus printer Wifi printer	Thermal printer Stylus printer
Power supply	AC 100 to 240 V, 50/60 Hz, 120W
Product dimensions (L×W×H)	439 mm × 350 mm × 217 mm
Package dimensions (L×W×H)	720 mm × 470 mm × 390 mm
Net weight	12 kg	12 kg	8.5 kg
Gross weight	20 kg	20 kg	15 kg

Description

The DM is a density meter designed for food testing, agricultural analysis and quality-control laboratories in Riyadh, Dammam, Dhahran, Jubail, Al Khobar, Jeddah, Makkah, Yanbu and Jazan across Saudi Arabia.
